Electric motor repair and re-engineering in the Valley

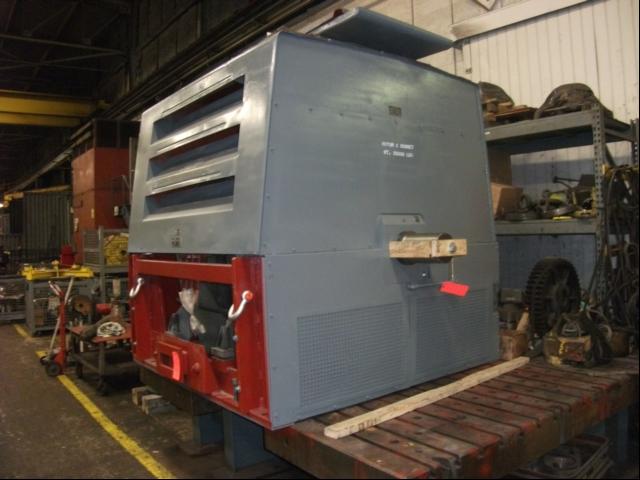

Completed motor

Completed motor

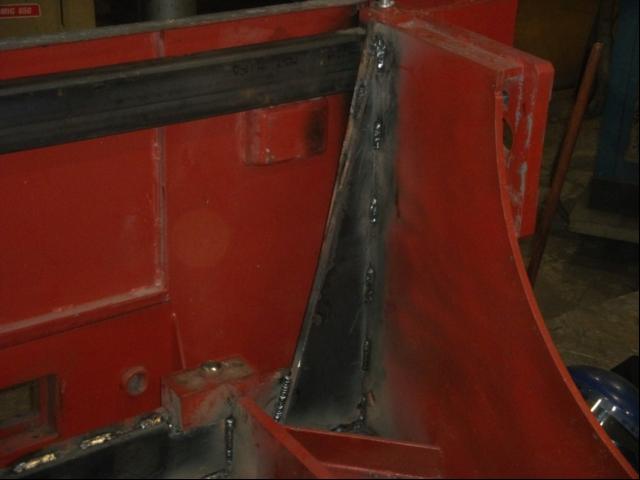

Gussets added

Gussets added

This 3,000 horsepower, 4,000 volt, 900 RPM AC induction fan motor’s fabricated frame showed signs of fatigue and stress.  The small movements allowed by a worn out frame structure can often lead to early winding failure and Babbitt bearing failure.  Additional structural reinforcement was needed prior to replacing the windings and/or bearings.  The photos show the installation of bracing, webbing, stringers, etc. to make a rigid structure that will adequately support the winding substructure and the Babbitt bearings.  The devil is in the details, and improving the structural components creates a motor that will have a much longer life. CMT can handle all your electric motor repair needs at our shop or yours.
